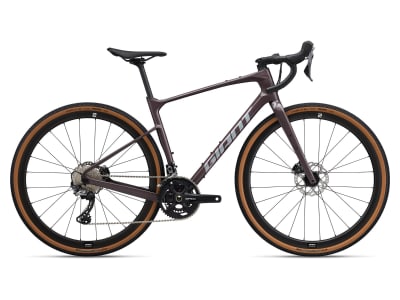

Giant Revolt Advanced 0 MY23

Frame

Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout

Fork

Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Shock

N/A

Handlebar

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips

Stratus Lite 3.0

Stem

Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost

Giant D-Fuse, composite, 14mm offset

Saddle

Giant Approach

Pedals

N/A

Shifters

Shimano GRX RX-810, 2x11

Front Derailleur

Shimano GRX RX-810

Rear Derailleur

Shimano GRX RX-810

Brakes

Shimano GRX RX-810 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm

Brake Levers

Shimano GRX RX-810 hydraulic

Cassette

Shimano CS-HG800, 11-speed, 11x34

Chain

KMC X11SL-1

Crankset

Shimano GRX RX-810, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket

Shimano, press fit

Rims

Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm

Hubs

[F] Giant alloy, CenterLock, 12mm thru-axle, [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle

Spokes

Sapim Sprint

Tires

CADEX AR, 700x40c, tubeless

Extras

tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
