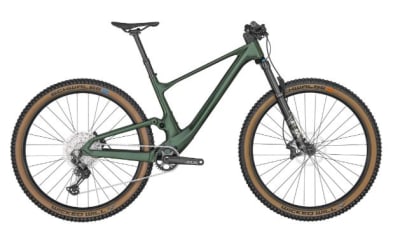

Scott Spark 930 Green

CUADRO

Spark Carbon HMF Mainframe with Alloy 6011 Swingarm
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline

HORQUILLA

FOX 34 Float Rhythm Air Grip
3-Modes / Kabolt 15x110mm axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 130mm travel

AMORTIGUADOR TRASERO

FOX NUDE 5T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Reb. Adj.
Travel 120-80-Lockout / T165X45mm

SISTEMA REMOTO

SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes

DESVIADOR TRASERO

Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed

PALANCAS DE CAMBIO

Shimano Deore SL-M6100-IR / Rapidfire Plus
Ispec EV clamp

BIELAS

Shimano SLX FC-M7120-1 / Hollowtech 2
55mm CL / 32T

PEDALIER

Shimano BB-MT500 / shell 41x92mm

CADENA

Shimano Deore CN-M6100

CASSETTE

Shimano Deore CS-M6100-12 / 10-51 T

FRENOS

Shimano Deore M6120 4 Piston Disc

DISCO DE FRENO

Shimano SM-RT64 CL / F&R 180mm

MANILLAR

Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Performance XC lock-on grips

POTENCIA

Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"

TIJA DE SILLÍN

Syncros Duncan Dropper Post 2.0
31.6mm / S & M size 125mm / L size 150mm / XL size 170mm

SILLÍN

Syncros Tofino 2.0 Regular
CRMO rails

JUEGO DE DIRECCIÓN

Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB

BUJE DELANTERO

Formula CL-811 / 15x110mm

BUJE TRASERO

Formula CL-148M / 12x148mm / Micro Spline
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools

RADIOS

Stainless Black 15G / 1.8mm

LLANTAS BICICLETA

Syncros X-30SE / 32H / 30mm
Tubeless ready

NEUMÁTICO DELANTERO

Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Soft

NEUMÁTICO TRASERO

Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Grip

PESO EN KG (APROX.)

13.5 (Tubeless setup)
