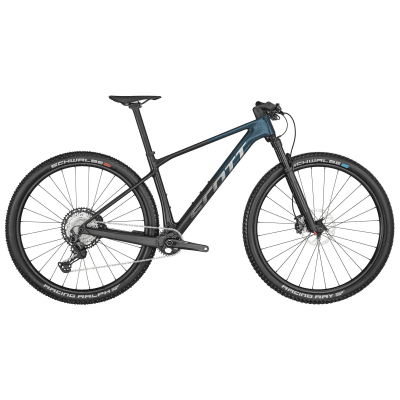

Scott Scale RC Team

CUADRO

Scale Carbon HMF
Adjustable head angle / Syncros Cable Integration System
Advanced Shock & Standing Damping System
BB92 / UDH Interface / 12x148mm with 55mm Chainline

HORQUILLA

RockShox SID SL RL Air
15x110mm Maxle Stealth / 44mm offset / Tapered steerer
Lockout / Reb. Adj. / 100mm travel

SISTEMA REMOTO

SCOTT RideLoc 2 Technology
2 Suspension modes

DESVIADOR TRASERO

Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed

PALANCAS DE CAMBIO

Shimano XT SL-M8100-IR / Rapidfire Plus
Ispec EV clamp

BIELAS

Shimano XT FC-M8120-1 / Hollowtech 2
32T

PEDALIER

Shimano SM-BB71-41A / shell 41x92mm

CADENA

Shimano CN-M7100

CASSETTE

Shimano XT CS-M8100-12 / 10-51 T

FRENOS

Shimano XT M8100 Disc

DISCO DE FRENO

Shimano SM-RT76 / 6 Bolt / 180/F and 160/R

MANILLAR

Syncros Fraser 1.5 XC Alloy 7075 D.B.
Flat Bar / 8° / 740mm
Syncros Performance XC lock-on grips

POTENCIA

Syncros XC 1.5
Syncros Cable Integration System
-12° rise / 7050 Alloy / 31.8mm / 1 1/8"

TIJA DE SILLÍN

Syncros Duncan 2.0
31.6x400mm

SILLÍN

Syncros Belcarra Regular 2.0
CrMo rails

JUEGO DE DIRECCIÓN

Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB

JUEGO DE RUEDAS

Syncros Silverton 2.0-30 6 Bolt
F: 15x110mm, R: 12x148mm
30mm Tubeless ready rim / 28H / XD Driver
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools

NEUMÁTICO DELANTERO

Schwalbe Racing Ray 29x2.35" EVO
Super Ground / TLE / 67EPI / Addix Speed Grip

NEUMÁTICO TRASERO

Schwalbe Racing Ralph 29x2.35" EVO
Super Ground / TLE / 67EPI / Addix Speed Grip

PESO EN KG (APROX.)

10.6 (Tubeless setup)
